Gume za kamione i autobuse

AUFINE Group

Glavni proizvodi proizvođača, Aufine Group su radijalne gume za kamione I autobuse koje su proizvedene po svim standardima kvaliteta tako da poseduju evropske sertifikate o kvalitetu, između ostalih I ISO 9001.

Kompanija Aufine Group ima razvijenu distributivnu mrežu u preko 130 zemalja širom Evrope, Amerike, Azije I Afrike .

Ovo je proizvodjač koji brine o sigurnosti, udobnosti I zadovoljstvu vozača širom sveta.

Gume ovog proizvođača su proizvedene po najnovijim inovativnim tehnologijama, tako da su to gume visokih perfomansi.

Kompletnu ponudu guma proizvođača Aufine pogledaje u njihovom katalogu

Aufine katalog

Triangle Tyre Co.Ltd.

Triangle Tyre Co.Ltd. je fabrika koja je osnovana 1976. Godine. Kao lider u industriji guma u Kini, ima proizvodni asortiman koji obuhvata kamionske gume , putničke gume, radijalne gume. Do sada je godišnji proizvodni kapacitet dostigao 22 miliona jedinica.

Triangle Tyre Co.Ltd posebno ulaže u tehnološke inovacije, istraživanja, dizajn u službi proizvodnje pneumatika , kako bi zadovoljio zahteve potrošača širom sveta.Triangle Tyre Co.Ltd kao preteča i lider nacionalne radijalne gumarske tehnologije u Kini ima ogroman domaći i inostrani rejting i igra ključnu ulogu u postavljanju nacionalnih i profesionalnih standarda u industriji guma.

Danas je Triangle Tyre Co.Ltd postao jedan od četiri najveća svetska proizvođača inženjerskih radijalnih pneumatika.

Kompletnu ponudu guma proizvođača Triangle pogledaje u njihovom katalogu

Triangle katalog

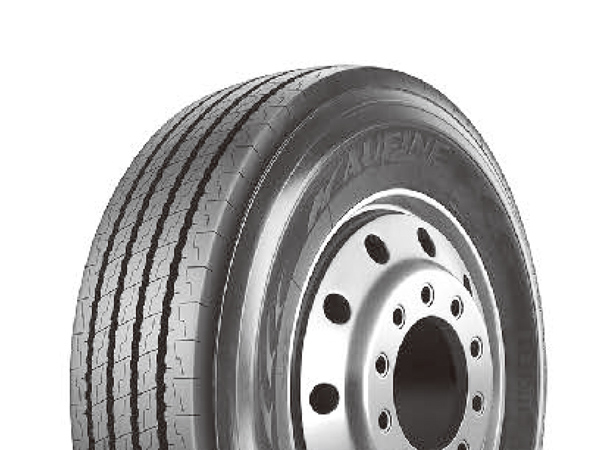

AUFINE GALAXY AF177

U principu kružni i kontinuelni dezen ove kamionske gume za prednje i ostale točkove omogućuje manji otpor kotrljanja i manju buku.

Specijalni dezen gazećeg sloja sprečava bočno proklizavanje.

SIZE	P.R	Load Range	Style	Load Index	Tread Depth		Max Speed mph	Speed Rating	Overall Diameter		Overall Width		Standard Rim	Max. Tire Load Single				Max. Tire Load Dual
SIZE	P.R	Load Range	Style	Load Index	32nds	mm	Max Speed mph	Speed Rating	in.	mm.	in.	mm.	Standard Rim	lbs.	psi	kg.	kpa	lbs.	psi	kg.	kpa
8R22.5	14	G	TL	130/128	17.0	13.5	80	M	36.8	935	8.0	203	6.00	4190	120	1900	830	3970	120	1800	830
9R22.5	16	H	TL	139/137	18.3	14.5	80	M	38.3	974	9.0	229	6.75	5360	135	2430	930	5070	135	2300	930
10R22.5	16	H	TL	144/142	18.9	15.5	80	M	40.1	1018	10.0	254	7.50	6175	130	2800	900	5840	130	2650	900
11R22.5	16	H	TL	146/143	20.8	16.5	80	M	41.5	1054	11.0	279	8.25	6610	120	3000	830	6005	120	2725	830
11R22.5	16	H	TL	149/146	20.8	16.5	75	L	43.4	1103	11.0	279	8.25	7160	120	3250	830	6620	120	3000	830
12R22.5	18	J	TL	152/149	20.8	16.5	80	M	42.7	1084	11.8	300	9.00	7830	135	3550	930	7160	135	3250	930
13R22.5	18	J	TL	154/151	20.8	16.5	75	L	44.3	1124	12.6	320	9.75	8270	120	3750	830	7610	120	3450	830
205/75R17.5	14	G	TL	124/122	16.4	13.0	80	M	29.5	749	6.3	160	6.00	3530	110	1600	760	3310	110	1500	760
215/75R17.5	14	G	TL	126/124	16.4	13.0	80	M	30.0	761	6.8	172	6.00	3750	102	1700	700	3530	102	1600	700
215/75R17.5	16	H	TL	135/133	16.4	13.0	62	J	30.0	761	6.8	172	6.00	4805	125	2180	860	4540	125	2060	860
225/75R17.5	16	H	TL	129/127	16.4	13.0	80	M	30.6	776	7.1	180	6.75	4080	120	1850	830	3860	120	1750	830
235/75R17.5	16	H	TL	132/130	17.0	13.5	80	M	31.2	792	7.4	189	6.75	4410	112	2000	775	4190	112	1900	775
235/75R17.5	18	J	TL	143/141	17.0	13.5	62	J	31.2	792	7.4	189	6.75	6005	127	2725	875	5675	127	2575	875
245/70R17.5	16	H	TL	136/134	16.4	13.0	80	M	30.7	781	7.6	192	7.50	4940	130	2240	850	4675	130	2120	850
245/70R17.5	18	J	TL	143/141	16.4	13.0	62	J	30.7	781	7.6	192	7.50	6005	130	2725	900	5675	130	2575	900
225/70R19.5	14	G	TL	128126	17.0	13.5	80	M	31.7	804	6.9	176	6.75	3970	110	1800	760	3750	110	1700	760
245/70R19.5	16	H	TL	136/134	17.0	13.5	80	M	32.8	832	7.6	192	7.50	4940	120	2240	830	4675	120	2120	830
245/70R19.5	18	J	TL	143/141	17.0	13.5	62	J	32.8	832	7.6	192	7.50	6005	127	2725	875	5675	127	2575	875
255/70R22.5	16	H	TL	140/137	16.4	13.0	80	M	36.6	930	10.0	255	7.50	5510	120	2500	830	5070	120	2300	830
265/70R19.5	16	H	TL	140/138	18.3	14.5	80	M	34.1	866	7.9	200	7.50	5510	120	2500	830	5205	120	2360	830
265/70R19.5	18	J	TL	143/141	18.3	14.5	62	J	34.1	866	7.9	200	7.50	6005	123	2725	850	5675	123	2575	850
285/70R19.5	16	H	TL	146/144	18.3	14.5	80	M	35.0	888	8.5	216	8.25	6610	130	3000	900	6175	130	2800	900
285/70R19.5	18	J	TL	150/148	18.3	14.5	62	J	35.0	888	8.5	216	8.25	7385	130	3350	900	6945	130	3150	900
275/70R22.5	18	H	TL	148/145	21.0	16.5	80	M	40.0	958	11.0	276	8.25	6940	130	3150	900	6395	130	2900	900
275/70R22.5	16	H	TL	149/146	20.8	16.5	80	M	39.8	1012	10.9	276	8.25	7165	123	3250	850	6620	123	3000	850
295/80R22.5	18	J	TL	154/151	20.8	16.5	80	M	41.1	1044	11.7	298	9.00	8270	130	3750	900	7610	130	3450	900
315/70R22.5	18	J	TL	156/150	19.5	15.5	80	L	42.3	1075	12.4	314	9.00	8270	130	3750	900	7385	130	3350	900
315/80R22.5	20	L	TL	157/154	20.8	16.5	80	M	42.3	1075	12.4	314	9.00	9090	130	4125	900	8270	130	3750	900

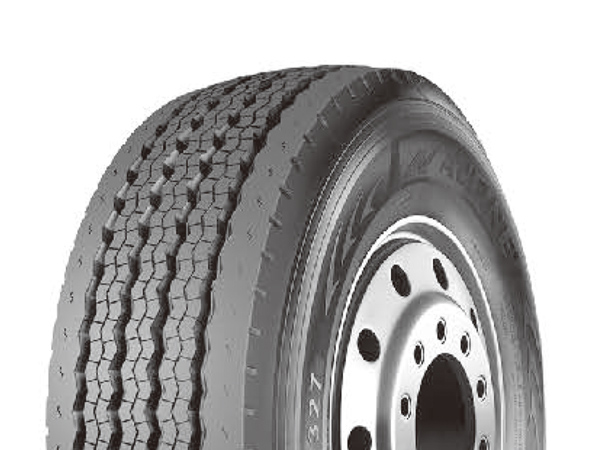

AUFINE GALAXY AF327

Dvostruka smesa gume u gazećem sloju osigurava niske radne temperature i pomaže da index habanja bude nizak.

Duboki i široki kanali na ovim upravljačkim gumama omogućuju brzo i efikasno oslobadjanje od vode tokom celog zivotnog ciklusa.

Bočna udubljenja na gazećem sloju poboljšavaju vučne odlike i kočenje.

SIZE	P.R	Load Range	Style	Load Index	Tread Depth		Max Speed mph	Speed Rating	Overall Diameter		Overall Width		Standard Rim	Max. Tire Load Single				Max. Tire Load Dual
SIZE	P.R	Load Range	Style	Load Index	32nds	mm	Max Speed mph	Speed Rating	in.	mm.	in.	mm.	Standard Rim	lbs.	psi	kg.	kpa	lbs.	psi	kg.	kpa
385/65R22.5	20	L	TL	160	20.8	16.5	68	K	42.2	1072	15.3	389	11.75	9920	130	4500	900	-	-	-	-
385/65R22.5	22	L	TL	160/162	20.8	16.5	68	K/L	42.2	1072	15.3	389	11.75	10500	140	4750	950	-	-	-	-

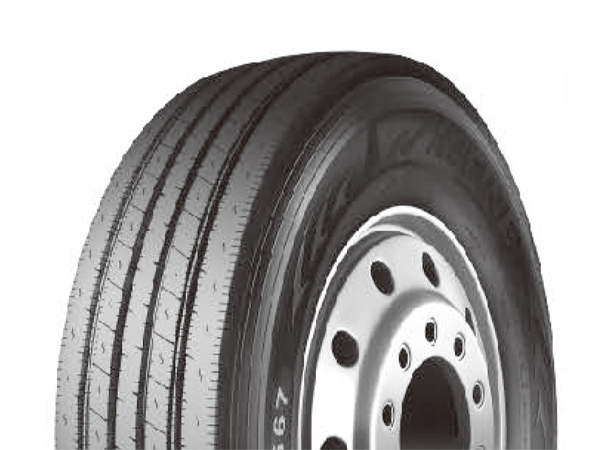

AUFINE GALAXY AF667

Povećana kilometraža i stabilnost obrtanja gume za prednje točkove kamiona i ostale pozicije, kao i ojačana ramena.

Poboljšan otpor bočnom i proklizavanju na blatnoj podlozi.

Dezen sa smanjenim habanjem gazećeg sloja

SIZE	P.R	Load Range	Style	Load Index	Tread Depth		Max Speed mph	Speed Rating	Overall Diameter		Overall Width		Standard Rim	Max. Tire Load Single				Max. Tire Load Dual
SIZE	P.R	Load Range	Style	Load Index	32nds	mm	Max Speed mph	Speed Rating	in.	mm.	in.	mm.	Standard Rim	lbs.	psi	kg.	kpa	lbs.	psi	kg.	kpa
11.00R22	18	J	TT	154/151	18.9	15.0	75	L	44.7	1135	11.5	293	8.00	8270	135	3750	930	7610	135	3450	930
12R22.5	18	J	TL	152/149	18.9	15.0	80	M	42.7	1084	11.8	300	9.00	7830	135	3550	930	7160	135	3250	930
275/80R22.5	16	H	TL	149/146	18.9	15.0	80	M	39.8	1012	10.9	276	8.25	7160	123	3250	850	6620	123	3000	850
295/60R22.5	16	H	TL	150/147	17.0	13.5	75	L	36.5	926	11.5	292	9.00	7385	130	3350	900	6780	130	3075	900
295/80R22.5	18	J	TL	154/151	18.9	15.0	80	M	41.1	1044	11.7	298	9.00	8270	130	3750	900	7610	130	3450	900
305/70R22.5	16	H	TL	152/148	18.9	15.0	80	M	39.4	1000	12.0	305	9.00	7830	130	3550	900	6945	130	3150	900
305/75R22.5	16	H	TL	154/149	18.9	15.0	75	L	42.5	1080	12.0	305	9.00	8270	123	3750	850	7160	123	3250	850
315/60R22.5	16	H	TL	152/148	17.0	13.5	80	M	37.4	949	12.4	316	9.75	7830	130	3550	900	6945	130	3150	900
315/80R22.5	18	J	TL	154/151	18.9	15.0	80	M	42.3	1075	12.4	314	9.00	8270	120	3750	830	7610	120	3450	830
315/80R22.5	20	L	TL	157/154	18.9	15.0	80	M	42.3	1075	12.4	314	9.00	9090	130	4125	900	8270	130	3750	900

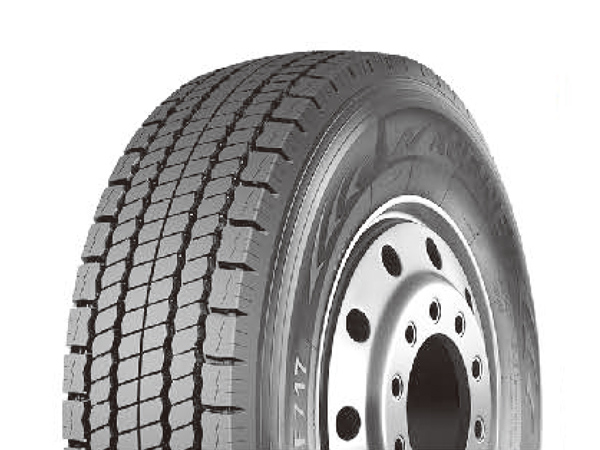

AUFINE CONQUEROR AF717

Vučna guma za kamione, smanjuje potrošnju goriva.

Bez kompromisa na trajnost, otpornost na habanje ponašanje na vlažnoj podlozi.

Odlične vučne karakteristike i ponašanje po vlažnom vremenu.

SIZE	P.R	Load Range	Style	Load Index	Tread Depth		Max Speed mph	Speed Rating	Overall Diameter		Overall Width		Standard Rim	Max. Tire Load Single				Max. Tire Load Dual
SIZE	P.R	Load Range	Style	Load Index	32nds	mm	Max Speed mph	Speed Rating	in.	mm.	in.	mm.	Standard Rim	lbs.	psi	kg.	kpa	lbs.	psi	kg.	kpa
11.00R22	18	J	TT	154/151	27.7	22.0	75	L	44.7	1135	11.5	293	8.00	8270	135	3750	930	7610	135	3450	930
11R22.5	16	H	TL	146/143	22.7	18.0	80	M	41.5	1054	11.0	279	8.25	6610	120	3000	830	6005	120	2725	830
12R22.5	18	J	TL	152/149	22.7	18.0	80	M	42.7	1084	11.8	300	9.00	7830	135	3550	930	7160	135	3250	930
13R22.5	18	J	TL	154/151	22.7	18.0	75	L	44.3	1124	12.6	320	9.75	8270	120	3750	830	7610	120	3450	830
205/75R17.5	14	G	TL	124/122	18.9	15.0	80	M	29.6	753	6.3	160	6.00	3530	110	1600	760	3310	110	1500	760
215/75R17.5	14	G	TL	126/124	18.9	15.0	80	M	30.1	765	6.8	172	6.00	3750	102	1700	700	3530	102	1600	700
225/75R17.5	16	H	TL	129/127	20.1	16.0	80	M	30.8	782	7.1	180	6.75	4080	120	1850	830	3860	120	1750	830
235/75R17.5	16	H	TL	132/130	20.1	16.0	80	M	31.4	797	7.4	189	6.75	4410	112	2000	775	4190	112	1900	775
245/70R17.5	16	H	TL	136/134	20.1	16.0	80	M	31.0	787	7.6	192	7.50	4940	123	2240	850	4675	123	2120	850
225/70R19.5	14	G	TL	128/126	19.6	15.5	80	M	31.8	807	6.9	176	6.75	3970	110	1800	760	3750	110	1700	760
245/70R19.5	16	H	TL	136/134	18.4	14.5	80	M	33.0	838	7.6	192	7.50	4940	120	2240	830	4675	120	2120	830
265/70R19.5	16	H	TL	140/138	19.6	15.5	80	M	34.2	869	7.9	200	7.50	5510	120	2500	830	5205	120	2360	830
285/70R19.5	16	H	TL	146/144	20.8	16.5	80	M	35.2	893	8.5	216	8.25	6610	130	3000	900	6175	130	2800	900
275/70R22.5	18	H	TL	148/145	23.5	18.5	80	M	40.0	958	11.0	276	8.25	6940	130	3150	900	6395	130	2900	900
275/80R22.5	16	H	TL	149/146	22.7	18.0	80	M	39.8	1012	10.9	276	8.25	7165	123	3250	850	6620	123	3000	850
295/80R22.5	18	J	TL	154/151	22.7	18.0	80	M	41.1	1044	11.7	298	9.00	8270	130	3750	900	7610	130	3450	900
315/70R22.5	18	J	TL	156/150	22.7	18.0	80	L	42.3	1075	12.4	314	9.00	8270	130	3750	900	7385	130	3350	900
315/80R22.5	18	J	TL	154/151	22.7	18.0	80	M	42.3	1075	12.4	314	9.00	8270	120	3750	830	7610	120	3450	830
315/80R22.5	20	L	TL	157/154	22.7	18.0	80	M	42.3	1075	12.4	314	9.00	9090	130	4125	900	8270	130	3750	900

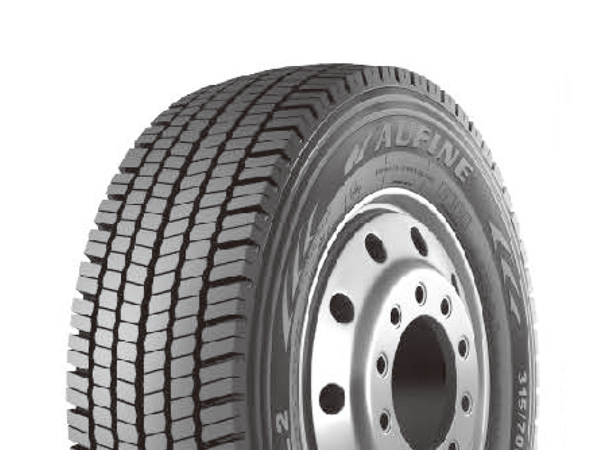

AUFINE ENERGY ADL2

Vučna guma za kamione sa specificnim dezenom ramenog pojasa protiv oštećenja o ivičnjake i bočnog trošenja.

Usmereni dezen koji omogućuje jaku vuču uz minimalno habanje.

Vrlo duboka poprečna udubljenja na centalnim kanalima zajedno sa vrlo dubokim udubljenjima na ramenom delu gazećeg sloja služe da poboljšaju transverzalnu i longitudinalnu vuču i prianjanje kroz ceo životni ciklus.

SIZE	P.R	Load Range	Style	Load Index	Tread Depth		Max Speed mph	Speed Rating	Overall Diameter		Overall Width		Standard Rim	Max. Tire Load Single				Max. Tire Load Dual
SIZE	P.R	Load Range	Style	Load Index	32nds	mm	Max Speed mph	Speed Rating	in.	mm.	in.	mm.	Standard Rim	lbs.	psi	kg.	kpa	lbs.	psi	kg.	kpa
315/70R22.5	18	J	TL	154/150	23.3	18.5	75	L	40.0	1017	12.2	310	9.00	8270	130	3750	900	7390	130	3350	900
315/70R22.5	18	J	TL	152/148	23.3	18.5	75	M	40.0	1017	12.2	310	9.00	8270	130	3750	900	7390	130	3350	900
315/80R22.5	20	L	TL	156/150	26.5	21.0	75	L	42.8	1087	12.4	314	9.00	8820	123	4000	850	7390	123	3350	850
315/80R22.5	20	L	TL	154/150	26.5	21.0	75	M	42.8	1087	12.4	314	9.00	8820	123	4000	850	7390	123	3350	850

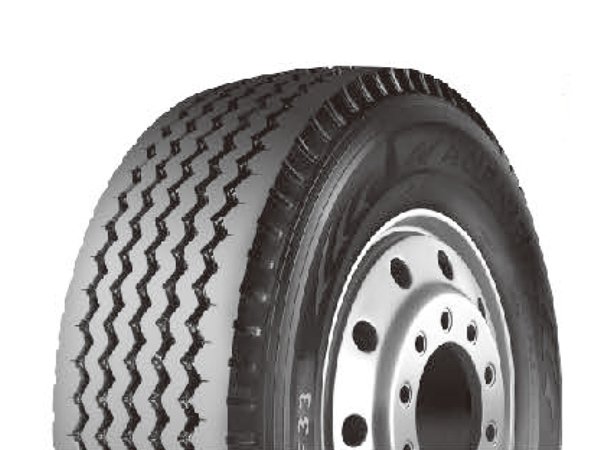

AUFINE GALAXY AF33

Odlična upravljačka i prikolicna guma za velike brzine, dugotrajnost i manji otpor kotrljanja omogućeni dezenom sa ojačanim ramenim i centralnim pojasom gazećeg sloja.

Diskontinualni mali blok dezen sa naizmeničnim udubljenjima omogućuje odlicne kočne i vučne karakteristike.

Dizajnirana za velike kilometraže.

SIZE	P.R	Load Range	Style	Load Index	Tread Depth		Max Speed mph	Speed Rating	Overall Diameter		Overall Width		Standard Rim	Max. Tire Load Single				Max. Tire Load Dual
SIZE	P.R	Load Range	Style	Load Index	32nds	mm	Max Speed mph	Speed Rating	in.	mm.	in.	mm.	Standard Rim	lbs.	psi	kg.	kpa	lbs.	psi	kg.	kpa
385/65R22.5	20	L	TL	160	20.8	16.5	68	K	42.2	1072	15.3	389	11.75	9920	130	4500	900	-	-	-	-
425/65R22.5	18	J	TL	162	20.8	16.5	62	J	44.3	1124	16.9	430	13.00	10475	110	4750	760	-	-	-	-
425/65R22.5	20	L	TL	165	20.8	16.5	68	K	44.3	1124	16.9	430	13.00	11350	120	5150	830	-	-	-	-

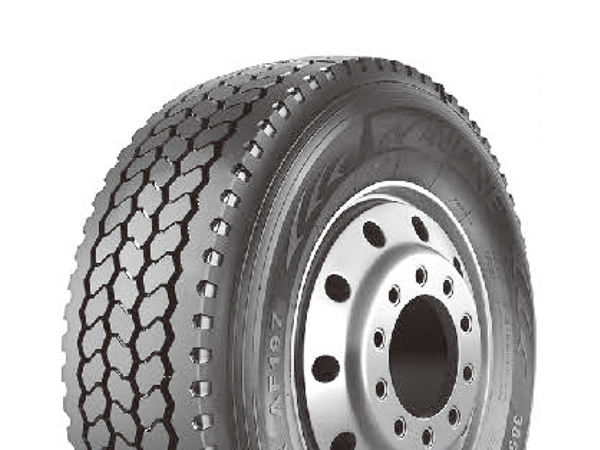

AUFINE CONQUEROR AF197

Svi delovi gazećeg sloja ove vučne gume za kamione imaju pun dodir sa podlogom, izbegavaju nepravilno habanje i obezbedjuju veću kilometražu.

Gume su za vučnu poziciju, sa visokom mogućnošću tovarenja i odličnim kočnim i vučnim karakteristikama.

SIZE	P.R	Load Range	Style	Load Index	Tread Depth		Max Speed mph	Speed Rating	Overall Diameter		Overall Width		Standard Rim	Max. Tire Load Single				Max. Tire Load Dual
SIZE	P.R	Load Range	Style	Load Index	32nds	mm	Max Speed mph	Speed Rating	in.	mm.	in.	mm.	Standard Rim	lbs.	psi	kg.	kpa	lbs.	psi	kg.	kpa
385/65R22.5	20	L	TL	160	20.8	16.5	68	K	42.2	1072	15.3	389	11.75	9920	130	4500	900	-	-	-	-

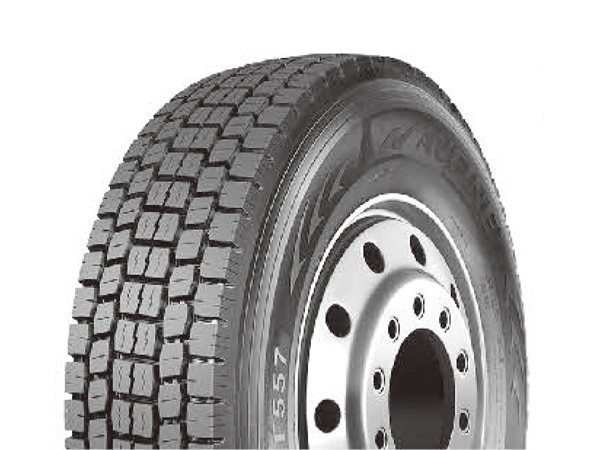

AUFINE CONQUEROR AF557

Vučna guma za kamione za srednje i duže relacije na autoputevima i regionalnim putevima.

Odlične manevarske sposobnosti i na suvom i vlažnom.

Štitnik bočnice za produženu trajnost.

SIZE	P.R	Load Range	Style	Load Index	Tread Depth		Max Speed mph	Speed Rating	Overall Diameter		Overall Width		Standard Rim	Max. Tire Load Single				Max. Tire Load Dual
SIZE	P.R	Load Range	Style	Load Index	32nds	mm	Max Speed mph	Speed Rating	in.	mm.	in.	mm.	Standard Rim	lbs.	psi	kg.	kpa	lbs.	psi	kg.	kpa
10.00R20	18	J	TT	149/146	27.0	21.5	75	L	41.5	1055	10.9	278	7.50	7160	135	3250	930	6610	135	3000	930
11.00R22	18	J	TT	154/151	27.7	22.0	75	L	44.7	1135	11.5	293	8.00	8270	135	3750	930	7610	135	3450	930
12R22.5	18	J	TL	152/149	25.2	20.0	80	M	42.7	1084	11.8	300	9.00	7830	135	3550	930	7160	135	3250	930
295/60R22.5	16	H	TL	150/147	23.3	18.5	75	L	36.5	926	11.5	292	9.00	7385	130	3350	900	6780	130	3075	900
295/80R22.5	18	J	TL	154/151	25.2	20.0	80	M	41.1	1044	11.7	298	9.00	8270	130	3750	900	7610	130	3450	900
305/70R22.5	16	H	TL	152/148	27.7	22.0	80	M	39.4	1000	12.0	305	9.00	7830	130	3550	900	6945	130	3150	900
305/75R24.5	16	H	TL	154/149	27.7	22.0	75	L	42.5	1080	12.0	305	9.00	8270	123	3750	850	7160	123	3250	850
315/60R22.5	16	H	TL	152/148	23.3	18.5	80	M	37.4	949	12.4	316	9.75	7830	130	3550	900	6945	130	3150	900
315/80R22.5	18	J	TL	154/151	25.2	20.0	80	M	42.3	1075	12.4	314	9.00	8270	120	3750	830	7610	120	3450	830
315/80R22.5	20	L	TL	157/154	25.2	20.0	80	M	42.3	1075	12.4	314	9.00	9090	130	4125	900	8270	130	3750	900

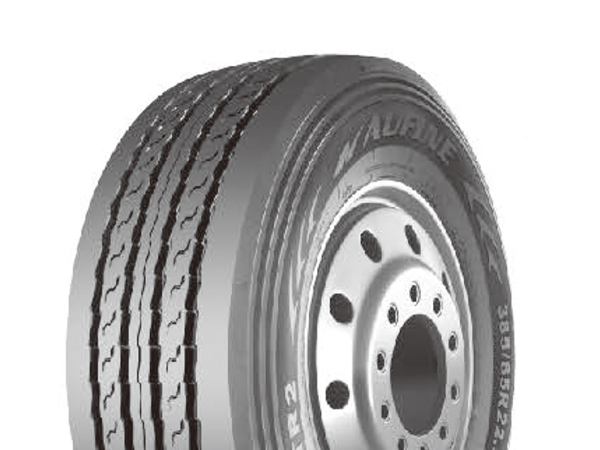

AUFINE ENERGY ATR2

Guma za prikolice sa dezenom koji omogućuje efikasnu drenažu vode i ravnomerno trošenje.

Izuzetan zahvat na podlozi i u pravcu i bočno i na suvim i na mokrim površinama. Širi rameni pojas gazećeg sloja daje veću otpornost na bočno habanje.

SIZE	P.R	Load Range	Style	Load Index	Tread Depth		Max Speed mph	Speed Rating	Overall Diameter		Overall Width		Standard Rim	Max. Tire Load Single				Max. Tire Load Dual
SIZE	P.R	Load Range	Style	Load Index	32nds	mm	Max Speed mph	Speed Rating	in.	mm.	in.	mm.	Standard Rim	lbs.	psi	kg.	kpa	lbs.	psi	kg.	kpa
385/65R22.5	20	L	TL	160	20.8	16.5	68	K	42.0	1067	15.2	385	11.75	9920	130	4500	900	-	-	-	-
385/65R22.5	20	L	TL	158	20.8	16.5	68	L	42.0	1067	15.2	385	11.75	9920	130	4500	900	-	-	-	-
385/55R22.5	20	L	TL	160	19.5	15.5	68	J	39.2	996	15.2	386	12.25	9920	130	4500	900	-	-	-	-

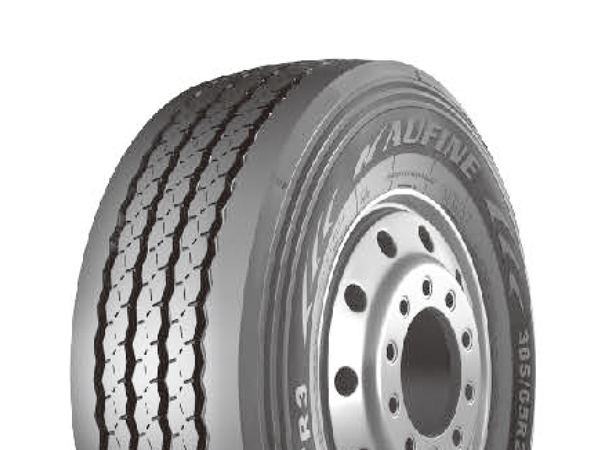

AUFINE ENERGY ATR3

Prikolična guma za kamione ima gumenu smesu koja daje poboljšanu otpornost na slučajna oštećenja.

Prošireni gazeći sloj prikolicne kamionske gume daje bolji dodir sa podlogom kao i tovarni kapacitet.

Linijska zaštita bočnica i robusni dezen ramenog dela poboljšava otpornost na bočno habanje.

SIZE	P.R	Load Range	Style	Load Index	Tread Depth		Max Speed mph	Speed Rating	Overall Diameter		Overall Width		Standard Rim	Max. Tire Load Single				Max. Tire Load Dual
SIZE	P.R	Load Range	Style	Load Index	32nds	mm	Max Speed mph	Speed Rating	in.	mm.	in.	mm.	Standard Rim	lbs.	psi	kg.	kpa	lbs.	psi	kg.	kpa
385/65R22.5	20	L	TL	160	20.8	16.5	68	K	42.0	1067	15.2	385	11.75	9920	130	4500	900	-	-	-	-
385/65R22.5	20	L	TL	158	20.8	16.5	68	L	42.0	1067	15.2	385	11.75	9920	130	4500	900	-	-	-	-

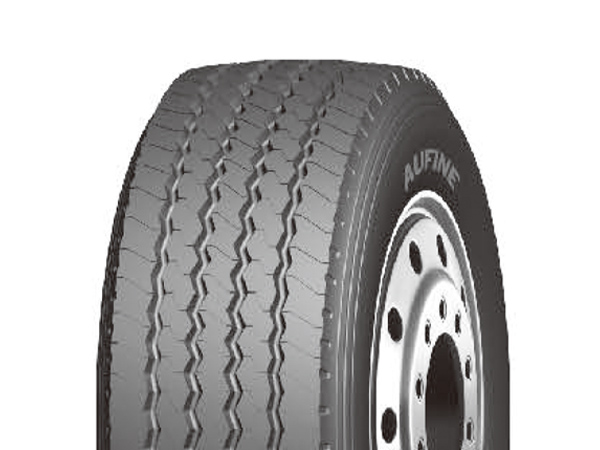

AUFINE ENERGY ATR5

SIZE	P.R	Load Range	Style	Load Index	Tread Depth		Max Speed mph	Speed Rating	Overall Diameter		Overall Width		Standard Rim	Max. Tire Load Single				Max. Tire Load Dual
SIZE	P.R	Load Range	Style	Load Index	32nds	mm	Max Speed mph	Speed Rating	in.	mm.	in.	mm.	Standard Rim	lbs.	psi	kg.	kpa	lbs.	psi	kg.	kpa
385/55R19.5	18	J	TL	156	19.5	15.5	62	J	36.2	919	15.6	396	12.25	8820	130	4000	900
385/55R22.5	20	L	TL	160	19.5	15.5	62	J	39.2	996	15.2	386	12.25	9920	130	4500	900

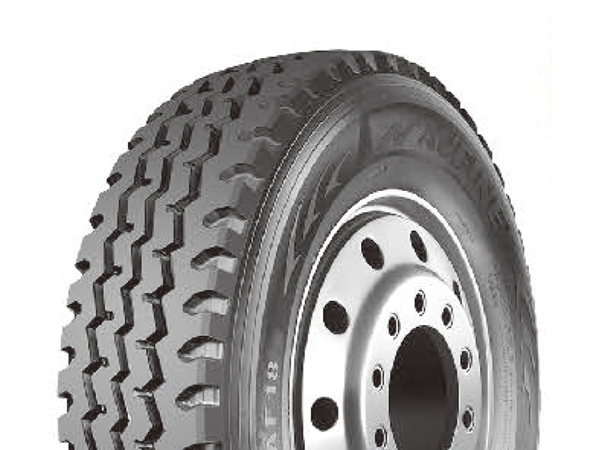

AUFINE GALAXY AF18

Dezen ramenog pojasa gazećeg sloja sa poprečnim blokovima omogućuje mobilnost po mekoj podlozi.

Primena specijalne smese pomaže otpornost na kidanje i rezanje.

Uglovi na cik-cak kanalima omogućuju da se kamenje ne zadržava u njima.

SIZE	P.R	Load Range	Style	Load Index	Tread Depth		Max Speed mph	Speed Rating	Overall Diameter		Overall Width		Standard Rim	Max. Tire Load Single				Max. Tire Load Dual
SIZE	P.R	Load Range	Style	Load Index	32nds	mm	Max Speed mph	Speed Rating	in.	mm.	in.	mm.	Standard Rim	lbs.	psi	kg.	kpa	lbs.	psi	kg.	kpa
6.50R16LT	12	F	TT	110/105	12.6	10.0	80	M	29.5	750	7.3	185	5.50F	2340	95	1060	670	2040	95	925	670
7.00R16LT	14	G	TT	118/114	16.4	13.0	75	L	30.6	776	7.9	200	5.50F	2910	110	1320	770	2600	110	1180	770
7.50R16LT	16	H	TT	124/120	15.7	12.5	75	L	31.7	805	8.5	215	6.00G	3525	125	1600	870	3085	125	1400	870
7.550R20	14	G	TT	130/126	15.7	12.5	75	L	36.8	935	8.5	215	6.00	4160	110	1885	770	3750	110	1700	770
8.25R16LT	16	H	TT	128/124	15.7	12.5	80	M	33.7	856	9.3	235	6.50H	3970	110	180	770	3525	110	1600	770
8.25R20	16	H	TT	139/137	18.3	14.5	75	L	38.2	971	9.1	232	6.50	5360	135	2430	930	5070	135	2300	930
9.00R20	16	H	TT	144/142	19.5	15.5	75	L	40.2	10.22	10.2	258	7.00	6175	130	2800	900	5850	130	2650	900
10.00R20	18	J	TT	149/146	20.8	16.5	75	L	41.5	10.53	10.7	273	7.50	7160	135	3250	930	6610	135	3000	930
11.00R20	18	J	TT	152/149	21.4	17.0	75	L	42.8	1087	11.3	287	8.00	7830	135	3550	930	7160	135	3250	930
12.00R20	18	J	TT	154/151	22.0	17.5	75	L	44.2	11.22	12.2	310	8.50	8270	120	3750	830	7610	120	3450	830
12.00R20	20	L	TT	156/153	22.0	17.5	75	L	44.2	11.22	12.2	310	8.50	8820	130	4000	900	8050	130	3650	900
12.00R24	20	L	TT	160/157	18.3	14.5	68	K	48.3	12.26	12.3	313	8.50	9920	130	4500	900	9090	130	4125	900
11R20.5	16	H	TL	146/143	20.8	16.5	80	M	41.5	10.54	11.0	279	8.25	6610	120	3000	830	6005	120	2725	830
12R22.5	18	J	TL	152/149	21.4	17.0	80	M	42.7	10.84	11.8	300	9.00	7830	135	3550	930	7160	135	3250	930
13R22.5	18	J	TL	152/151	22.0	17.5	75	L	44.3	11.24	12.6	320	9.75	8270	120	3750	830	7610	120	3450	830
315/80R22.5	20	L	TL	157/154	21.4	17.0	80	M	42.3	10.75	12.4	314	9.00	9090	130	4125	900	8270	130	3750	900

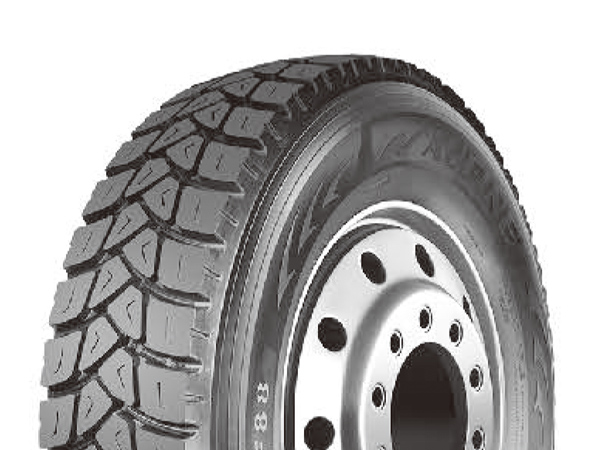

AUFINE CONQUEROR AF88

Vučna guma za kamione sa poboljšanom vučom zbog novog usmerenog dezena gazećeg sloja.

Odlična zaštita od sokova, prepreka i udara zahvaljujuci extra-debeloj bočnici.

SIZE	P.R	Load Range	Style	Load Index	Tread Depth		Max Speed mph	Speed Rating	Overall Diameter		Overall Width		Standard Rim	Max. Tire Load Single				Max. Tire Load Dual
SIZE	P.R	Load Range	Style	Load Index	32nds	mm	Max Speed mph	Speed Rating	in.	mm.	in.	mm.	Standard Rim	lbs.	psi	kg.	kpa	lbs.	psi	kg.	kpa
12R22.5	18	J	TL	152/149	25.2	20.0	68	K	42.7	10.84	11.8	300	9.00	7830	135	3550	930	7160	135	3250	930
13R.22.5	18	J	TL	154/151	26.5	21.0	68	K	44.3	11.24	12.6	320	9.75	8270	120	3750	830	7610	120	3450	830
295/80R22.5	18	J	TL	154/151	23.9	19.0	68	K	41.1	10.44	11.7	298	9.00	8270	130	3750	900	7610	130	3450	900
315/80R22.5	20	L	TL	157/154	26.5	21.0	68	K	42.4	10.78	12.4	314	9.00	9090	130	4125	900	8270	130	3750	900

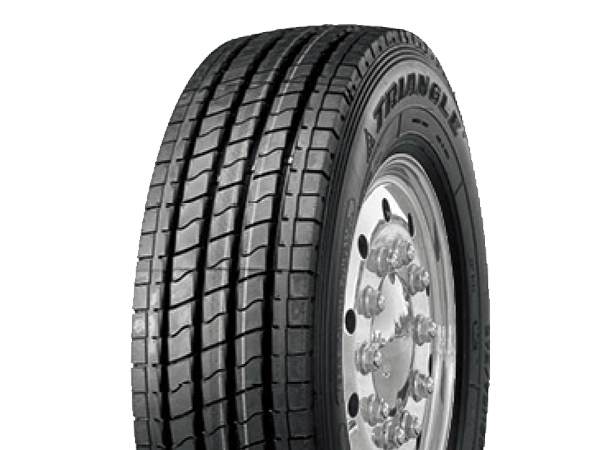

TRIANGLE TR615

Size	PR	Loading Index		Speed Rating	Tread Depth (mm)	Rim Width	Alternative Rim	New Tire Inflated Dimensions(mm)		Max Load (Kg)		Pressure (KPa) Single/Dual	Tube	Static Radius Under Load (mm)	Min.Dual Tire Space (mm)
Size	PR	Single	Dual	Speed Rating	Tread Depth (mm)	Rim Width	Alternative Rim	Section Width	Overall Diameter	Single	Dual	Pressure (KPa) Single/Dual	Tube	Static Radius Under Load (mm)	Min.Dual Tire Space (mm)
265/55R17.5	18	136	-	J	16.5	8.25	-	264	737	2240	-	900	TL	-	-
275/70R22.5	16	148	145	J	19.0	8.25	9.00	276	958	3150	2900	860	TL	446	311
275/70R22.5	18	152	148	J	19.0	8.25	9.00	276	958	3550	3150	930	TL	446	311
11R22.5	16	146	143	J	19.0	8.25	7.50	279	1054	3000	2725	830	TL	491	318
11R22.5	16	148	145	J	19.0	8.25	7.50	279	1054	3150	2900	850	TL	491	318
295/80R22.5	18	152	149	J	15.0	9.00	8.25	298	1044	3550	3250	900	TL	487	335

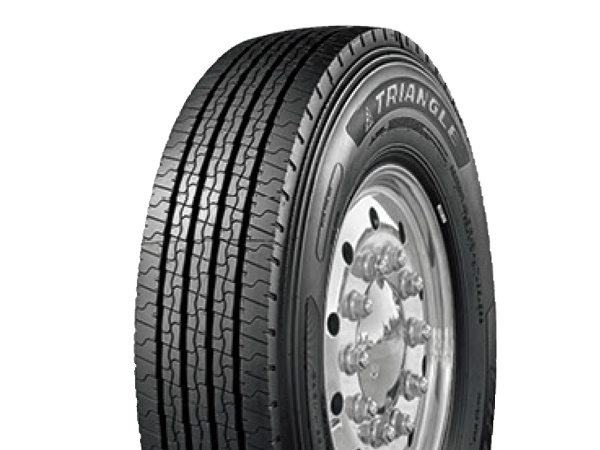

TRIANGLE TR685

Size	PR	Loading Index		Speed Rating	Tread Depth (mm)	Rim Width	Alternative Rim	New Tire Inflated Dimensions(mm)		Max Load (Kg)		Pressure (KPa) Single/Dual	Tube	Static Radius Under Load (mm)	Min.Dual Tire Space (mm)
Size	PR	Single	Dual	Speed Rating	Tread Depth (mm)	Rim Width	Alternative Rim	Section Width	Overall Diameter	Single	Dual	Pressure (KPa) Single/Dual	Tube	Static Radius Under Load (mm)	Min.Dual Tire Space (mm)
8.25R16LT	14	126	122	M	13.0	6.50H	6.00G, 6.50	235	855	1700	1500	670	TT	397	278
8.25R16LT	16	128	124	M	13.0	6.50H	6.00G, 6.50	235	855	1800	1600	770	TL	397	278
205/75R17.5	12	122	120	M	12.0	6.00	5.25, 6.75	204	753	1500	1400	675	TL	353	230
205/75R17.5	14	124	122	M	12.0	6.00	5.25, 6.75	204	753	1600	1500	750	TL	353	230
205/75R17.5	16	126	124	M	12.0	6.00	5.25, 6.75	204	753	1700	1600	810	TL	353	230
215/75R17.5	14	126	124	M	14.0	6.00	6.75	211	767	1700	1600	700	TL	360	237
215/75R17.5	16	127	124	M	14.0	6.00	6.75	211	767	1750	1600	830	TL	360	237
215/75R17.5	16	135	133	L	14.0	6.00	6.75	211	767	2180	2060	860	TL	360	237
225/75R17.5	14	127	125	M	14.5	6.75	6.00	226	783	1750	1650	760	TL	366	254
225/75R17.5	16	129	127	M	14.5	6.75	6.00	226	783	1850	1750	830	TL	366	254
225/75R17.5	18	131	129	L	14.5	6.75	6.00	226	783	1950	1850	790	TL	366	254
235/75R17.5	16	132	129	M	14.0	6.75	7.50	233	797	2000	1850	830	TL	373	262
235/75R17.5	16	141	140	J	14.0	6.75	7.50	233	797	2575	2500	850	TL	373	262
235/75R17.5	18	143	141	J	14.0	6.75	7.50	233	797	2725	2575	860	TL	373	262
9.5R17.5	14	129	127	L	15.0	6.75	6.00	240	842	1850	1750	750	TL	393	270
9.5R17.5	18	143	141	J	15.0	6.75	6.00	240	842	2725	2575	875	TL	393	270
245/70R17.5	16	136	134	M	13.5	7.50	6.75	248	789	2240	2120	850	TL	364	279
245/70R17.5	18	143	141	J	13.5	7.50	6.75	248	789	2725	2575	875	TL	364	279
8R19.5	12	124	122	K	13.0	6.00	6.75	203	859	1600	1500	760	TL	402	231
8R19.5	14	127	125	L	13.0	6.00	6.75	203	859	1750	1650	850	TL	402	231
225/70R19.5	12	125	123	M	14.5	6.75	6.00	226	811	1650	1550	660	TL	382	254
225/70R19.5	14	128	126	L	14.5	6.75	6.00	226	811	1800	1700	760	TL	382	254
225/70R19.5	18	143	141	J	14.5	6.75	6.00	226	811	2725	2575	860	TL	382	254
245/70R19.5	14	133	131	L	14.5	7.50	6.75	248	839	2060	1950	760	TL	391	279
245/70R19.5	16	135	133	L	14.5	7.50	6.75	248	839	2180	2060	830	TL	391	279
245/70R19.5	18	141	140	J	14.5	7.50	6.75	248	839	2575	2500	850	TL	391	279
285/70R19.5	16	146	144	L	13.5	8.25	7.50, 9.00	283	895	3000	2800	850	TL	412	318
285/70R19.5	18	150	148	J	13.5	8.25	7.50, 9.00	283	895	3350	3150	900	TL	412	318
305/70R19.5	16	144	141	M	15.0	9.00	8.25	305	923	2800	2575	760	TL	425	343
305/70R19.5	18	146	143	M	15.0	9.00	8.25	305	923	3000	2725	830	TL	425	343
305/70R19.5	20	148	145	L	15.0	9.00	8.25	305	923	3150	2900	850	TL	425	343
10R22.5	14	141	139	M	15.0	7.50	6.75	254	1019	2575	2430	790	TL	476	290
10R22.5	16	144	142	L	15.0	7.50	6.75	254	1019	2800	2650	900	TL	476	290
11R22.5	14	144	142	M	15.0	8.25	7.50	279	1054	2800	2650	720	TL	491	318
11R22.5	16	146	143	M	15.0	8.25	7.50	279	1054	3000	2725	830	TL	491	318
11R22.5	16	148	145	M	15.0	8.25	7.50	279	1054	3150	2900	850	TL	491	318
255/70R22.5	16	140	137	M	14.5	7.50	8.25	255	930	2500	2300	830	TL	435	287
315/70R22.5	16	149	146	M	16.0	9.00	9.75	312	1014	3250	3000	760	TL	469	351
315/70R22.5	18	151	148	M	16.0	9.00	9.75	312	1014	3450	3150	830	TL	469	351
315/70R22.5	16	152/154	148/150	M/L	16.0	9.00	9.75	312	1014	3550	3150	830	TL	469	351
8R22.5	14	130	128	M	13.0	6.00	6.75	203	935	1900	1800	830	TL	440	231
9R22.5	14	136	134	L	14.0	6.75	7.50	229	974	2240	2120	830	TL	457	261

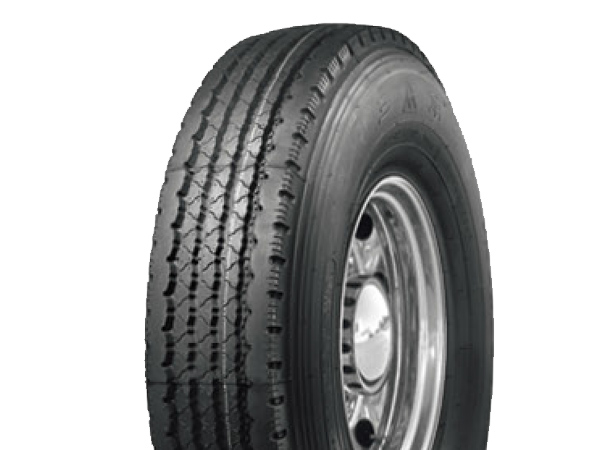

TRIANGLE TR693

Size	PR	Loading Index		Speed Rating	Tread Depth (mm)	Rim Width	Alternative Rim	New Tire Inflated Dimensions(mm)		Max Load (Kg)		Pressure (KPa) Single/Dual	Tube	Static Radius Under Load (mm)	Min.Dual Tire Space (mm)
Size	PR	Single	Dual	Speed Rating	Tread Depth (mm)	Rim Width	Alternative Rim	Section Width	Overall Diameter	Single	Dual	Pressure (KPa) Single/Dual	Tube	Static Radius Under Load (mm)	Min.Dual Tire Space (mm)
7.50R15TR	18	136	134	J	12.5	6.00	5.50, 6.50	215	808	2240	2120	830	TT	-	244
8.25R15TR	14	129	127	J	12.5	6.50	6.00	236	847	1850	1750	830	TT	-	269
8.25R15TR	18	143	141	J	12.5	6.50	6.00	236	847	2725	2575	850	TT	-	269
7.50R16LT	14	122	118	L	12.5	6.00G	5.50F, 6.50H	215	805	1500	1320	770	TT	375	255

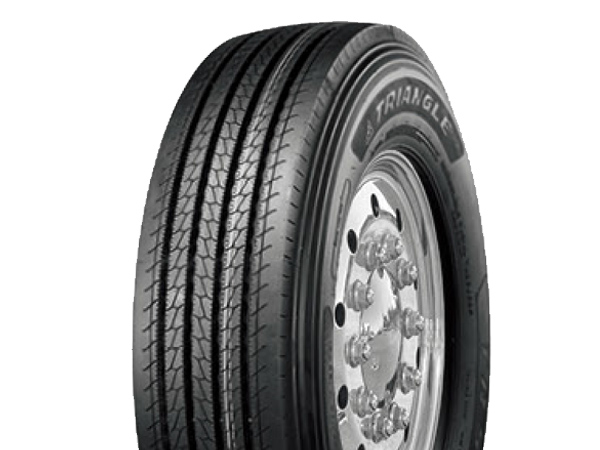

TRIANGLE TRS02

Size	PR	Loading Index		Speed Rating	Tread Depth (mm)	Rim Width	Alternative Rim	New Tire Inflated Dimensions(mm)		Max Load (Kg)		Pressure (KPa) Single/Dual	Tube	Static Radius Under Load (mm)	Min.Dual Tire Space (mm)
Size	PR	Single	Dual	Speed Rating	Tread Depth (mm)	Rim Width	Alternative Rim	Section Width	Overall Diameter	Single	Dual	Pressure (KPa) Single/Dual	Tube	Static Radius Under Load (mm)	Min.Dual Tire Space (mm)
265/70R19.5	14	137	134	M	14.0	7.50	8.25	262	867	2300	2120	760	TL	402	295
265/70R19.5	16	140	138	M	14.0	7.50	8.25	262	867	2500	2360	775	TL	402	295
275/80R22.5	16	149	146	M	14.0	8.25	7.50	276	1012	3250	3000	850	TL	473	311
295/80R22.5	16	152	148	M	16.0	9.00	8.25	298	1044	3550	3150	850	TL	487	335
12R22.5	16	150	147	L	16.0	9.00	8.25	300	1085	3350	3075	830	TL	504	342
12R22.5	18	152	149	K	16.0	9.00	8.25	300	1085	3550	3250	930	TL	504	343
315/80R22.5	18	154	151	M	16.0	9.00	9.75	312	1076	3750	3450	830	TL	500	351
315/80R22.5	20	157	154	L	16.0	9.00	9.75	312	1076	4125	3750	900	TL	500	351

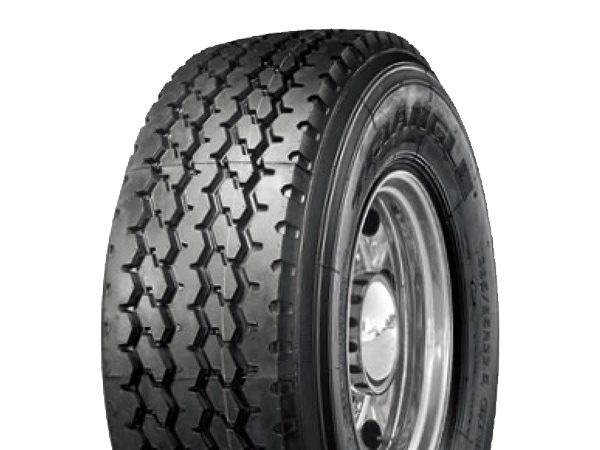

TRIANGLE TR697

Size	PR	Loading Index		Speed Rating	Tread Depth (mm)	Rim Width	Alternative Rim	New Tire Inflated Dimensions(mm)		Max Load (Kg)		Pressure (KPa) Single/Dual	Tube	Static Radius Under Load (mm)	Min.Dual Tire Space (mm)
Size	PR	Single	Dual	Speed Rating	Tread Depth (mm)	Rim Width	Alternative Rim	Section Width	Overall Diameter	Single	Dual	Pressure (KPa) Single/Dual	Tube	Static Radius Under Load (mm)	Min.Dual Tire Space (mm)
385/65R22.5	20	158	-	L	17.0	11.75	12.25	389	1072	4500	-	900	TL	494	-
385/65R22.5	20	160	-	J	17.0	11.75	12.25	389	1072	4500	-	900	TL	494	-

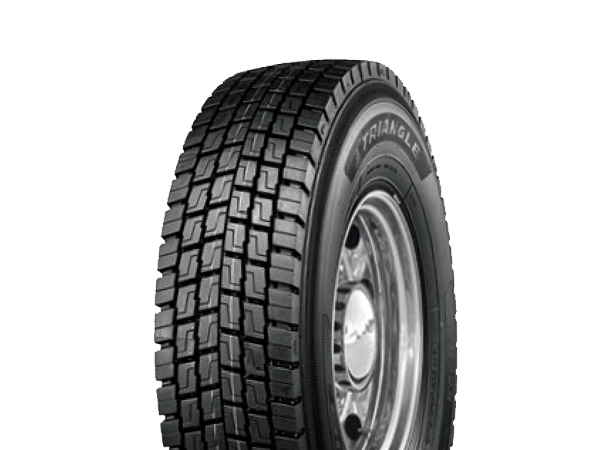

TRIANGLE TRD06

Size	PR	Loading Index		Speed Rating	Tread Depth (mm)	Rim Width	Alternative Rim	New Tire Inflated Dimensions(mm)		Max Load (Kg)		Pressure (KPa) Single/Dual	Tube	Static Radius Under Load (mm)	Min.Dual Tire Space (mm)
Size	PR	Single	Dual	Speed Rating	Tread Depth (mm)	Rim Width	Alternative Rim	Section Width	Overall Diameter	Single	Dual	Pressure (KPa) Single/Dual	Tube	Static Radius Under Load (mm)	Min.Dual Tire Space (mm)
9.5R17.5	14	129	127	L	16.0	6.75	6.00	240	842	1850	1750	750	TL	393	270
11.00R20	16	150	147	K	19.0	8.00	8.50, 8.00V	293	1085	3350	3075	830	TT	499	346
11.00R20	18	152	149	K	19.0	8.00	8.50, 8.00V	293	1085	3550	3250	930	TT	499	346
275/70R22.5	16	148	145	L	19.0	8.25	9.00	276	958	3150	2900	860	TL	446	311
295/80R22.5	16	152	148	L	20.0	9.00	8.25	298	1044	3550	3150	850	TL	487	335
12R22.5	16	150	147	L	21.5	9.00	8.25	300	1085	3350	3075	830	TL	504	342
12R22.5	18	152	149	K	21.5	9.00	8.25	300	1085	3550	3250	930	TL	504	342
295/60R22.5	18	150/147	149/146	K/L	19.0	9.00	9.75	292	926	3350	3075	900	TL	436	329
295/80R22.5	16	152	148	L	20.0	9.00	8.25	298	1044	3550	3150	850	TL	487	335
315/70R22.5	16	149	146	M	20.0	9.00	9.75	312	1014	3250	3000	760	TL	469	351
315/70R22.5	16	152/154	148/150	M/L	20.0	9.00	9.75	312	1014	3550	3150	830	TL	469	351
315/70R22.5	18	151	148	M	20.0	9.00	9.75	312	1014	3450	3150	830	TL	469	351
315/80R22.5	18	154	151	L	20.0	9.00	9.75	312	1076	3750	3450	830	TL	500	351
315/80R22.5	20	157	154	K	20.0	9.00	9.75	312	1076	4125	3750	900	TL	500	351

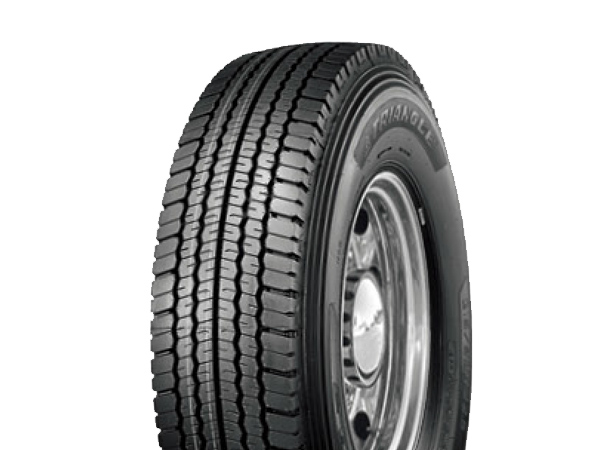

TRIANGLE TRD02

Size	PR	Loading Index		Speed Rating	Tread Depth (mm)	Rim Width	Alternative Rim	New Tire Inflated Dimensions(mm)		Max Load (Kg)		Pressure (KPa) Single/Dual	Tube	Static Radius Under Load (mm)	Min.Dual Tire Space (mm)
Size	PR	Single	Dual	Speed Rating	Tread Depth (mm)	Rim Width	Alternative Rim	Section Width	Overall Diameter	Single	Dual	Pressure (KPa) Single/Dual	Tube	Static Radius Under Load (mm)	Min.Dual Tire Space (mm)
285/70R19.5	14	140	137	M	16.5	8.25	9.00	283	895	2500	2300	760	TL	413	318
285/70R19.5	16	144	142	M	16.5	8.25	9.00	283	895	2800	2650	830	TL	413	318
295/80R22.5	16	152	148	M	8.0	9.00	8.25	298	1044	3550	3150	850	TL	487	335
295/80R22.5	18	154	151	M	8.0	9.00	8.25	298	1044	3750	3450	900	TL	487	335
315/70R22.5	16	149	146	M	16.0	9.00	9.75	312	1014	3250	3000	760	TL	469	351
315/70R22.5	16	152	148	M	16.0	9.00	9.75	312	1014	3550	3150	830	TL	469	351
315/70R22.5	16	154	150	L	16.0	9.00	9.75	312	1014	3550	3150	830	TL	469	351
315/70R22.5	18	151	148	M	16.0	9.00	9.75	312	1014	3450	3150	830	TL	469	351
315/80R22.5	18	154	151	M	20.0	9.00	9.75	312	1076	3750	3450	830	TL	500	351
315/80R22.5	20	157	154	L	20.0	9.00	9.75	312	1076	4125	3750	900	TL	500	351

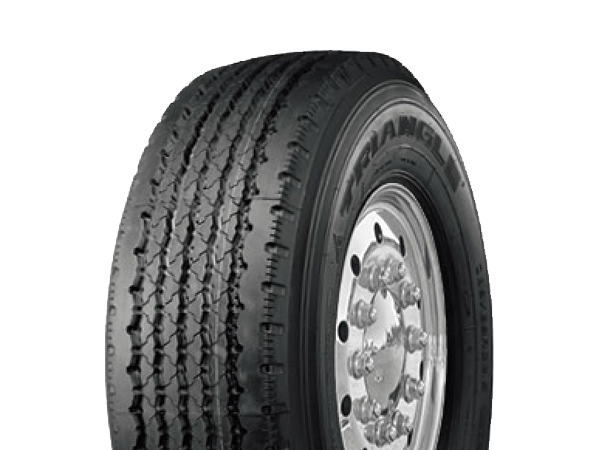

TRIANGLE TR692

Size	PR	Loading Index		Speed Rating	Tread Depth (mm)	Rim Width	Alternative Rim	New Tire Inflated Dimensions(mm)		Max Load (Kg)		Pressure (KPa) Single/Dual	Tube	Static Radius Under Load (mm)	Min.Dual Tire Space (mm)
Size	PR	Single	Dual	Speed Rating	Tread Depth (mm)	Rim Width	Alternative Rim	Section Width	Overall Diameter	Single	Dual	Pressure (KPa) Single/Dual	Tube	Static Radius Under Load (mm)	Min.Dual Tire Space (mm)
385/65R22.5	20	158/160	-	L	16.0	1.75	12.25	389	1072	4250	-	830/900	TL	494	-

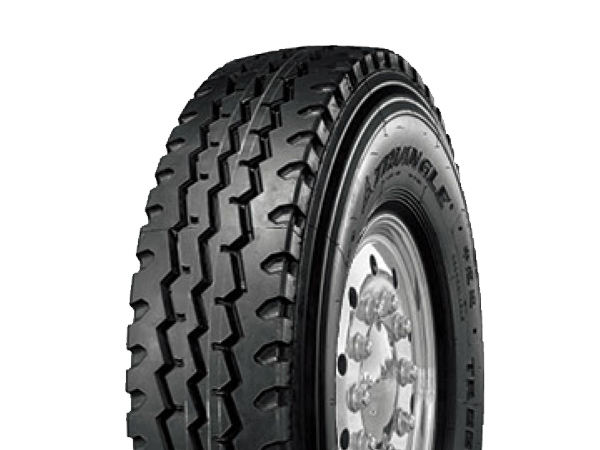

TRIANGLE TR668

Size	PR	Loading Index		Speed Rating	Tread Depth (mm)	Rim Width	Alternative Rim	New Tire Inflated Dimensions(mm)		Max Load (Kg)		Pressure (KPa) Single/Dual	Tube	Static Radius Under Load (mm)	Min.Dual Tire Space (mm)
Size	PR	Single	Dual	Speed Rating	Tread Depth (mm)	Rim Width	Alternative Rim	Section Width	Overall Diameter	Single	Dual	Pressure (KPa) Single/Dual	Tube	Static Radius Under Load (mm)	Min.Dual Tire Space (mm)
7.50R16LT	14	122	118	L	12.5	6.00G	5.50F,6.50H	215	805	1500	1320	770	TT	375	255
8.25R16LT	14	126	122	M	13	6.50H	6.00G 6.5	235	855	1700	1500	670	TT	397	278
8.25R20	14	136	134	L	14	6.5	6.50T,7.0,7.00T	236	974	2240	2120	830	TT	452	278
8.25R20	16	139	137	L	14	6.5	6.50T,7.0,7.00T	236	974	2430	2300	930	TT	452	278
9.00R20	16	144	142	L	15.5	7.0	7.00T,7.5	259	1019	2800	2650	900	TT	471	306
9.00R20	16	144	142	K	15.5	7.0	7.00T,7.5	259	1019	2800	2650	900	TT	471	306
10R17.5	16	141	139	J	14.0	7.50	6.75	254	892	2575	2430	840	TL	394	290
10R17.5	18	146	144	G	14.0	7.50	6.75	254	892	3000	2800	890	TL	394	290
10.00R20	16	146	143	K	16.5	7.50	8.00	278	1054	3000	2725	830	TT	486	328
10.00R20	16	146	143	L	16.5	7.50	8.00	278	1054	3000	2725	830	TT	486	328
10.00R20	18	149	146	K	16.5	7.50	8.00	278	1054	3250	3000	930	TT	486	328
10.00R20	18	149	146	L	16.5	7.50	8.00	278	1054	3250	3000	930	TT	486	328
11.00R20	12	143	141	K	17.0	8.00	8.50,8.00V	293	1085	2725	2575	620	TT	499	346
11.00R20	16	150	147	K	17.0	8.00	8.50,8.00V	293	1085	3350	3075	830	TT	499	346
11.00R20	16	150	147	L	17.0	8.00	8.50,8.00V	293	1085	3350	3075	830	TT	499	346
11.00R20	18	152	149	K	17.0	8.00	8.50,8.00V	293	1085	3550	3250	930	TT	499	346
11.00R20	18	152	149	L	17.0	8.00	8.50,8.00V	293	1085	3550	3250	930	TT	499	346
12.00R20	18	154	151	K	17.5	8.50	8.50V,9.00	315	1125	3750	3450	830	TT	516	372
12.00R20	18	154	151	L	17.5	8.50	8.50V,9.00	315	1125	3750	3450	830	TT	516	372
12.00R20	20	156	153	K	17.5	8.50	8.50V,9.00	315	1125	4000	3650	900	TT	516	372
12.00R20	22	158	155	J	17.5	8.50	8.50V,9.00	315	1125	4250	3875	970	TT	516	372
9R22.5	14	136	134	L	14.0	6.75	7.50	229	974	2240	2120	830	TL	457	261
11R22.5	14	144	142	M	16.5	8.25	7.50	279	1054	2800	2650	720	TL	491	318
11R22.5	16	146	143	M	16.5	8.25	7.50	279	1054	3000	2725	830	TL	491	318
295/80R22.5	16	152	148	L	17.5	9.00	8.25	298	1044	3550	3150	850	TL	487	335
12R/22.5	16	150	147	L	17.0	9.00	8.25	300	1085	3350	3075	830	TL	504	342
12R22.5	18	152	149	K	17.0	9.00	8.25	300	1085	3550	3250	930	TL	504	342
315/80R22.5	18	154	151	M	17.5	9.00	9.75	312	1076	3750	3450	830	TL	500	351
315/80R22.5	20	157	154	L	17.5	9.00	9.75	312	1076	4125	3750	900	TL	500	351
13R22.5	18	156	153	L	17.5	9.75	9.00	320	1124	4000	3650	875	TL	521	350
11R24.5	14	146	143	M	16.5	8.25	7.50	279	1104	3000	2725	720	TL	516	318
11R24.5	16	149	146	M	16.5	8.25	7.50	279	1104	3250	3000	830	TL	516	318

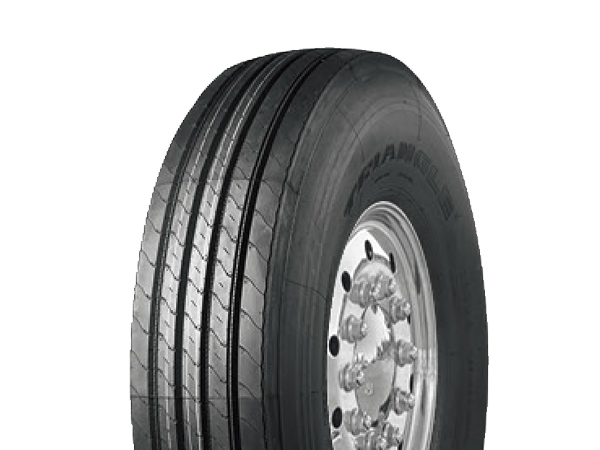

TRIANGLE TR695

Size	PR	Loading Index		Speed Rating	Tread Depth (mm)	Rim Width	Alternative Rim	New Tire Inflated Dimensions(mm)		Max Load (Kg)		Pressure (KPa) Single/Dual	Tube	Static Radius Under Load (mm)	Min.Dual Tire Space (mm)
Size	PR	Single	Dual	Speed Rating	Tread Depth (mm)	Rim Width	Alternative Rim	Section Width	Overall Diameter	Single	Dual	Pressure (KPa) Single/Dual	Tube	Static Radius Under Load (mm)	Min.Dual Tire Space (mm)
9.00R20	14	141	139	L	15.0	7.00	7.50	259	1019	2575	2430	790	TT	471	306
9.00R20	16	144	142	L	15.0	7.00	7.50	259	1019	2800	2650	900	TT	471	306
10.00R20	16	146	143	L	15.0	7.50	8.00	278	1054	3000	2725	830	TT	486	328
10.00R20	18	149	146	L	15.0	7.50	8.00	278	1054	3250	3000	930	TT	486	328
11.00R20	16	150	147	L	16.0	8.00	8.50, 8.00V	293	1085	3350	3075	830	TT	499	346
11.00R20	18	152	149	L	16.0	8.00	8.50, 8.00V	293	1085	3550	3250	930	TT	499	346
12.00R20	18	154	151	L	17.0	8.50	8.50V, 9.00	315	1125	3750	3450	830	TT	516	372
10R22.5	14	141	139	M	15.0	7.50	6.75	254	1019	2575	2430	790	TL	476	290
10R22.5	16	144	142	L	15.0	7.50	6.75	254	1019	2800	2650	900	TL	476	290
11R22.5	14	144	142	M	15.0	8.25	7.50	279	1054	2800	2650	720	TL	491	318
11R22.5	16	146	143	M	15.0	8.25	7.50	279	1054	3000	2725	830	TL	491	318
295/75R22.5	14	144	141	L	14.8	9.00	8.25	298	1014	2800	2575	760	TL	474	335
12R22.5	16	150	147	L	16.0	9.00	8.25	300	1085	3350	3075	830	TL	504	342
12R22.5	18	152	149	K	16.0	9.00	8.25	300	1085	3550	3250	930	TL	504	342
13R22.5	18	156	153	L	17.0	9.75	9.00	320	1124	4000	3650	875	TL	521	350
11R24.5	14	146	143	L	14.8	8.25	7.50	279	1104	3000	2725	720	TL	516	318
11R24.5	16	149	146	L	14.8	8.25	7.50	279	1104	3250	3000	830	TL	516	318
285/75R24.5	14	144	141	L	14.8	8.25	-	283	1050	2800	2575	760	TL	493	318

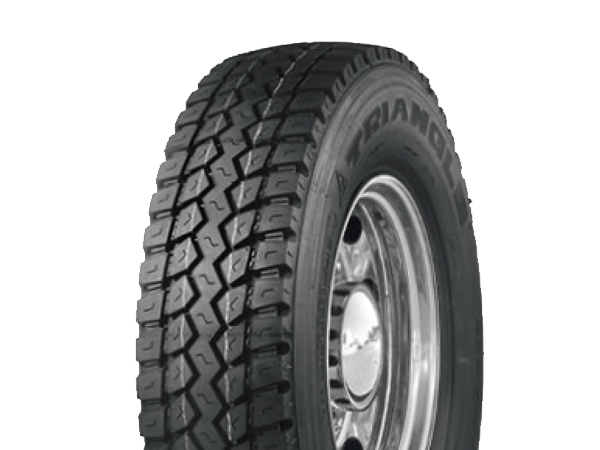

TRIANGLE TR689A

Size	PR	Loading Index		Speed Rating	Tread Depth (mm)	Rim Width	Alternative Rim	New Tire Inflated Dimensions(mm)		Max Load (Kg)		Pressure (KPa) Single/Dual	Tube	Static Radius Under Load (mm)	Min.Dual Tire Space (mm)
Size	PR	Single	Dual	Speed Rating	Tread Depth (mm)	Rim Width	Alternative Rim	Section Width	Overall Diameter	Single	Dual	Pressure (KPa) Single/Dual	Tube	Static Radius Under Load (mm)	Min.Dual Tire Space (mm)
8.25R16LT	14	126	122	M	15.0	6.50H	6.00G, 6.50	235	855	1700	1500	670	TT	397	278
215/75R17.5	14	126	124	M	16.0	6.00	6.75	211	767	1700	1600	700	TL	360	237
215/75R17.5	14	126	124	L	16.0	6.00	6.75	211	767	1700	1600	700	TL	360	237
215/75R17.5	16	127	124	M	16.0	6.00	6.75	211	767	1750	1600	830	TL	360	237
215/75R17.5	16	135	133	L	16.0	6.00	6.75	211	767	2180	2060	860	TL	360	237
215/75R17.5	18	136	134	J	16.0	6.00	6.75	211	767	2240	2120	890	TL	360	237
235/75R17.5	16	132	129	M	16.0	6.75	7.50	233	767	2000	1850	830	TL	373	262
235/75R17.5	16	141	140	J	16.0	6.75	7.50	233	767	2575	2500	850	TL	373	262
235/75R17.5	18	143	141	J	16.0	6.75	7.50	233	767	2725	2575	860	TL	373	262
225/70R19.5	12	125	123	M	17.5	6.75	6.00	226	811	1650	1550	660	TL	382	254
225/70R19.5	14	128	126	L	17.5	6.75	6.00	226	811	1800	1700	760	TL	382	254
225/70R19.5	18	143	141	J	17.5	6.75	6.00	226	811	2725	2575	860	TL	382	254
245/70R19.5	14	133	131	L	17.5	7.50	6.75	248	839	2060	1950	760	TL	391	279
245/70R19.5	16	135	133	L	17.5	7.50	6.75	248	839	2180	2060	830	TL	391	279

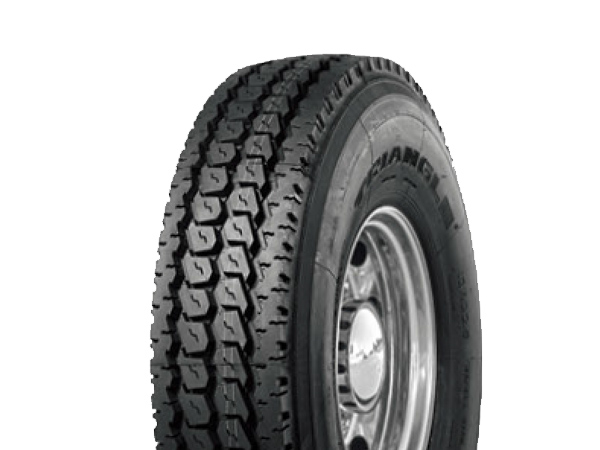

TRIANGLE TR657

Size	PR	Loading Index		Speed Rating	Tread Depth (mm)	Rim Width	Alternative Rim	New Tire Inflated Dimensions(mm)		Max Load (Kg)		Pressure (KPa) Single/Dual	Tube	Static Radius Under Load (mm)	Min.Dual Tire Space (mm)
Size	PR	Single	Dual	Speed Rating	Tread Depth (mm)	Rim Width	Alternative Rim	Section Width	Overall Diameter	Single	Dual	Pressure (KPa) Single/Dual	Tube	Static Radius Under Load (mm)	Min.Dual Tire Space (mm)
265/70R19.5	14	140	138	L	15.0	7.50	8.25	262	867	2500	2360	850	TL	402	295
265/70R19.5	18	143	141	J	15.0	7.50	8.25	262	867	2725	2575	850	TL	402	295
9.00R20	14	141	139	L	16.5	7.00	7.50	259	1019	2575	2430	790	TT	471	306
9.00R20	16	144	142	L	16.5	7.00	7.50	259	1019	2800	2650	900	TT	471	306
10.00R20	16	146	143	L	17.5	7.50	8.00	278	1054	3000	2725	830	TT	486	328
10.00R20	18	149	146	L	17.5	7.50	8.00	278	1054	3250	3000	930	TT	486	328
11.00R20	16	150	147	L	18.5	8.00	8.50, 8.00V	293	1085	3350	3075	830	TT	499	346
11.00R20	18	152	149	L	18.5	8.00	8.50, 8.00V	293	1085	3550	3250	930	TT	499	346
12.00R20	18	154	151	L	18.5	8.50	8.50V, 9.00	315	1125	3750	3450	830	TT	516	372
10R22.5	14	141	139	M	20.5	7.50	6.75	254	1019	2575	2430	790	TL	476	290
295/75R22.5	14	144	141	M	22.0	9.00	8.25	298	1014	2800	2575	760	TL	474	335
295/75R22.5	16	146	143	M	22.0	9.00	8.25	298	1014	3000	2725	830	TL	474	335
11R22.5	14	144	142	M	22.0	8.25	7.50	279	1054	2800	2650	720	TL	491	318
11R22.5	16	146	143	M	22.0	8.25	7.50	279	1054	3000	2725	830	TL	491	318
12R22.5	16	150	147	L	22.0	9.00	8.25	300	1085	3350	3075	830	TL	504	342
12R22.5	18	152	149	K	22.0	9.00	8.25	300	1085	3550	3250	930	TL	504	342
13R22.5	18	156	153	L	22.0	9.75	9.00	320	1124	4000	3650	875	TL	521	350
11R24.5	14	146	143	M	22.0	8.25	7.50	279	1104	3000	2725	720	TL	516	318
11R24.5	16	149	146	M	22.0	8.25	7.50	279	1104	3250	3000	830	TL	516	318
285/75R24.5	14	144	141	M	22.0	8.25	-	283	1050	2800	2575	760	TL	493	318
